Ultra Heat Resistant Labels / Tags
Ultra Heat Resistant Labels / Tags
Ultra Heat Resistant Labels / Tags
Usable in Ultra High Temperature Environments up to 1,200 ℃
We supply groundbreaking heat resistant, and ultra heat resistant, labels and tags that enable ID management, using barcodes for instance, in even the harshest ultra high temperature environments where conventional labels simply couldn’t cope. Using thermal transfer printers and dedicated heat resistant ink ribbons, it is possible to instantly print out essential information on the shop floor. The print won’t even fade or become discolored after exposure to heat. Available in two types, heat resistant labels can either be applied from room temperature, like conventional labels, or applied directly to objects at ultra high temperatures, such as steel or non-ferrous products.
Features
Improve Production Efficiency through Consistent Management from High Temperature Processes
Using ultra heat resistant labels and tags enables barcode-based ID management from high temperature processes up to a maximum of 1,200 ℃.

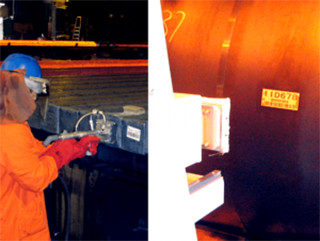

Apply Labels Directly to Ultra High Temperature Objects
High temperature application labels use specialist adhesive that can be applied directly to high temperature objects up to a maximum of 1,000 ℃. Application requires a dedicated applicator, automatic labeling machine or equivalent.

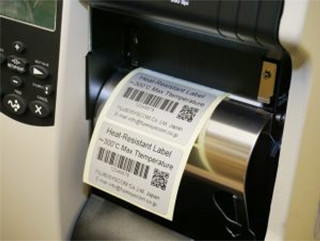

Instantly Print Essential Information on the Shop Floor
Ultra heat resistant labels and tags can be printed using commercially available thermal transfer printers, so that anyone can print out labels or tags instantly and effortlessly.
Lineup
Heat Resistant / Ultra Heat Resistant Labels (Room Temperature Application)
Labels can be used across a wide range of processes exposed to heat and applications that require heat resistance.
| Product | HP-122 | HP-150N | HP-350N | HP-CBR-CX2 |
|---|---|---|---|---|
| Maximum heat | Up to 220 ℃ | Up to 350 ℃ | Up to 600 ℃ | Up to 1,200 ℃ |
| Application temperature | Room temperature to 50 ℃ | Room temperature to 300 ℃ | Room temperature to 400 ℃ | Room temperature to 50 ℃ |
| Color | White | White | White | White |
| Base material | Aluminum | Aluminum | Aluminum | - |
| Adhesive | Ultra strong | Strong | High temperature | Ultra-high temperature |
| Base layer | Paper | Paper | Film | Paper |
Heat Resistant / Ultra Heat Resistant Labels (High Temperature Application)
Labels can be applied to high temperature objects by pressure bonding while they are normallynot adhesive, ensuring that they retain adhesion even after the temperature drops.
| Product | HP-600 | HP-700T | HP-900 |
|---|---|---|---|
| Maximum heat | Up to 600 ℃ | Up to 800 ℃ | Up to 1,000 ℃ |
| Application temperature | 250 ℃ to 600 ℃ | 450 ℃ to 800 ℃ | 450 ℃ to 1,000 ℃ |
| Color | White | White | White |
| Base material | Aluminum | Brass | Nickel |
| Adhesive | Yes(heat activated) | Yes(heat activated) | Yes(heat activated) |
| Base layer | None | None | None |
Heat Resistant / Ultra Heat Resistant Tags
| Product | HP-T40 | HP-M83 | HP-L80 | HP-L90 |
|---|---|---|---|---|
| Maximum heat | Up to 400 ℃ | Up to 850 ℃ | Up to 1000 ℃ | Up to 1200 ℃ |
| Color | White （one side） | White （both sides） | White （both sides） | White （both sides） |
| Base Material | Polymide | Stainless steel | Stainless steel | Stainless steel |
| Shop floor Printing | Yes | Yes | Yes | Yes |
| Features | - Low discoloration at high temperatures - Shatter resistant |
- Low discoloration at high temperatures - Chemical resistant (particularly acid resistant) |
- Low discoloration at high temperatures - Excellent durability |
- Low discoloration at high temperatures - Excellent durability - Magnetic |
Examples in Use
-

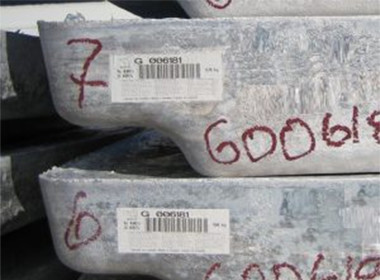

AluminumHigh temperature application heat resistant labels applied directly to aluminum thou at high temperatures
Object temperature: 500 ℃
Labels used: HP-600 (high temperature application)
-

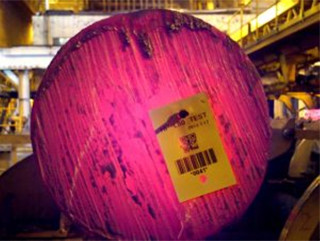

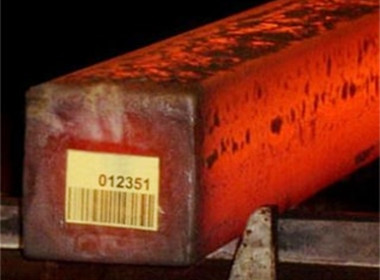

SteelUltra heat resistant labels applied directly to steel billets at high temperatures
Object temperature: 750 ℃
Labels used: HO-700T (high temperature application) -

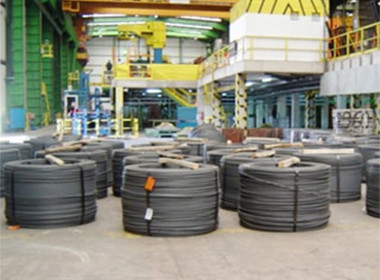

SteelConsistent management of steel wire from pre-treatment to heat treatment
Object temperature: Washing with hydrochloric acid, sulfuric acid, etc. →Heat treatment (more than ten hours in nitrogen atmosphere at 800 ℃)
Labels used: HP-M83 (ultra high temperature tags)
