EASY TO REPLACE CARTRIDGE
The ZD420 is the easiest thermal transfer printer to load, period. The simplicity of the ZD420’s ribbon cartridge takes the time and trouble out of replacing the printer ribbon. Regardless of experience level, end users can replace the ribbon and get back to work in seconds — with significantly fewer support calls to IT.
Industry
- Healthcare
- Transportation and Logistics
- Retail
- Manufacturing
In addition to the innovative ribbon cartridge, on-site upgrades and just about every modern wired and wireless connectivity option, the ZD420 also comes with Link-OS. This unique software platform greatly reduces time spent integrating, managing and troubleshooting all of your printers — making your thermal printers more cost effective than ever.
-
- PRINT METHOD
Thermal Transfer and Direct Thermal
-
- PRINT WIDTH
4.09”/104 mm
-
- PRINT RESOLUTION
203 or 300 dpi
-
- MAXIMUM PRINT SPEED
6”/152 mm per second (203 dpi)
4”/102 mm per second (300 dpi)
-
- MEDIA SENSORS
Multi-position transmissive and full-width reflective sensor
-
- COMMUNICATION METHODS
-
- Standard
- USB 2.0
- Bluetooth Low Energy
- USB Host
- Optional
- RS-232 Serial
- 10/100 Ethernet
- Wireless: 802.11ac with Bluetooth 4.1
The ZD420 is also available as a healthcare model. The ZD420 Healthcare comes with all the features included with the standard ZD420, plus disinfectant-ready plastics and a sealed button interface that make it easy to clean and disinfect. And the power supply is IEC 60601-1 compliant for use in healthcare facilities.
-
- PRINT METHOD
Thermal Transfer and Direct Thermal
-
- PRINT WIDTH
4.09”/104 mm
-
- PRINT RESOLUTION
203 or 300 dpi
-
- MAXIMUM PRINT SPEED
6”/152 mm per second (203 dpi)
4”/102 mm per second (300 dpi)
-
- MEDIA SENSORS
Multi-position transmissive and full-width reflective sensor
-
- COMMUNICATION METHODS
-
- Standard
- USB 2.0
- Bluetooth Low Energy
- USB Host
- Optional
- RS-232 Serial
- 10/100 Ethernet
- Wireless: 802.11ac with Bluetooth 4.1

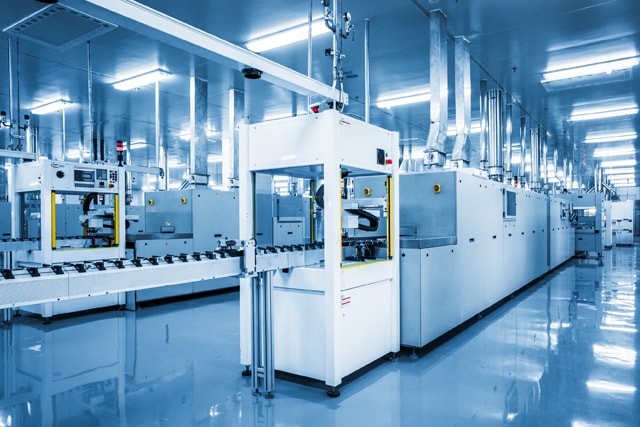

- Light Manufacturing :
Agency labels/nameplates, Product labels, Apparel tags
- Transportation & Logistics :
Asset labels
- Healthcare :
Lab and specimen labels, Asset labels, Blood & IV bag labels, Sterile services
- Retail :
Asset labels, Shelf labels, Record labels
- Government :
Asset labels, Record labels
- Services :
Service reminder labels
-
Field installable cutter -
Field installable dispenser – label peel and present with label present sensor -
Field installable Ethernet – 10/100 internal -
Field installable RS-232 auto-sensing Serial interface, DB-9 -
Factory installed wireless – Wi-Fi certified 802.11ac and Bluetooth 4.1; MFi-certified (Apple) -
Mounting adapter plate -
Optional media core adapters are available to accommodate 1.5” , 2” and 3” ID core sizes. -
ZKDU™ – keyboard display unit for ZPL
