ZT400 Series RFID Printers

RICH IN FEATURES, CONNECTIVITY OPTIONS

The ZT400 Series RFID printer/encoders offer advanced features for reliable printing and encoding, even in tough environments. Gain a competitive edge with greater tracking abilities, deeper visibility and enterprise insights.

Industry

  • Retail
  • Healthcare
  • Manufacturing
  • Transportation and Logistics
  • Warehouse Management
  • ZT410 RFID
  • ZT420 RFID

With a print width of 4 inches, the ZT410 RFID printer/encoder has print speeds up to 14 ips and offers high-resolution (600 dpi) printing for small-label applications. The ZT400 Series RFID features adaptive encoding technology for excellent media flexibility and simple RFID calibration.

  • PRINT METHOD

    Thermal Transfer and Direct Thermal

  • PRINT WIDTH

    4.09″/104mm

  • PRINT RESOLUTION

    203 or 300 or 600dpi

  • MAXIMUM PRINT SPEED

    Up to 14″/356 mm per second

  • MEDIA SENSORS

    Dual media sensors: transmissive and reflective

  • CONSTRUCTION

    Metal frame and bi-fold metal media cover with enlarged clear viewing window

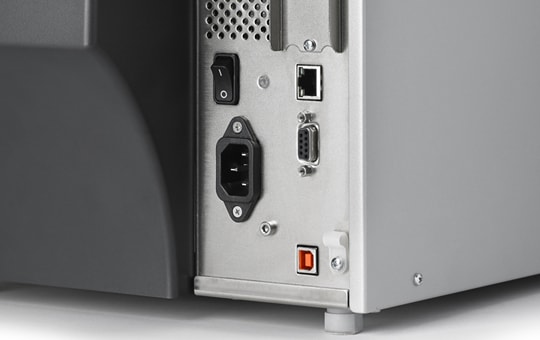

  • COMMUNICATION METHODS

    Parallel (Bi-directional interface)
    Wireless: ZebraNet® Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option that enables the use of Webview and Alert features

Fast and reliable, the ZT420 RFID printer/encoder has a print width of 6 inches and can print up to 12 ips. The ZT400 Series RFID features adaptive encoding technology for excellent media flexibility and simple RFID calibration.

  • PRINT METHOD

    Thermal Transfer and Direct Thermal

  • PRINT WIDTH

    6.6″/168 mm

  • PRINT RESOLUTION

    203 or 300 dpi

  • MAXIMUM PRINT SPEED

    12 ips/305 mm per second

  • MEDIA SENSORS

    Dual media sensors: transmissive and reflective

  • CONSTRUCTION

    Metal frame and bi-fold metal media cover with enlarged clear viewing window

  • COMMUNICATION METHODS

    Parallel (Bi-directional interface)
    Wireless: ZebraNet® Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option that enables the use of Webview and Alert features

Manufacturing :
item-level tagging, asset tagging, work-in-process, product ID/serial numbers, packaging labeling, receiving/putaway labeling
Transportation & Logistics :
order picking/packing, shipping/receiving, cross-docking, compliance labeling, pallet/asset tagging
Retail :
back-of-store operations, item-level tagging, distribution centers, security tagging
Healthcare :
laboratory labeling, specimen labeling, pharmacy labeling, asset management/ tagging

  • Parallel Card: Bi-directional interface
    Parallel Card: Bi-directional interface

  • Wi-Fi: Wireless 802.11 a/b/g/n wireless
    Wi-Fi: Wireless 802.11 a/b/g/n wireless

  • Rewind: Internally rewinds a full roll of printed labels on 3
    Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner (Factory installed only)

  • Peel: Front-mount, passive peel option
    Peel: Front-mount, passive peel option

  • Peel: Liner take-up option — additional full-roll liner take-up spindle accommodates standard printer base
    Peel: Liner take-up option — additional full-roll liner take-up spindle accommodates standard printer base

  • Cutter: Front-mount guillotine cutter and catch tray
    Cutter: Front-mount guillotine cutter and catch tray

  • 1
    1" I.D. Core media supply hanger

  • Ink-side in ribbon supply spindle
    Ink-side in ribbon supply spindle

  • ZKDU™ keyboard display units for stand-alone printing applications
    ZKDU™ keyboard display units for stand-alone printing applications
